FLAX Pumping Solutions
High-performance equipment for the most demanding industrial sectors. Engineered for reliability, efficiency, and longevity.
Filter Systems
Equipment Type
Target Industry
Need Assistance?
Our engineers can help select the ideal pump for your specific project specs.
Expert Support

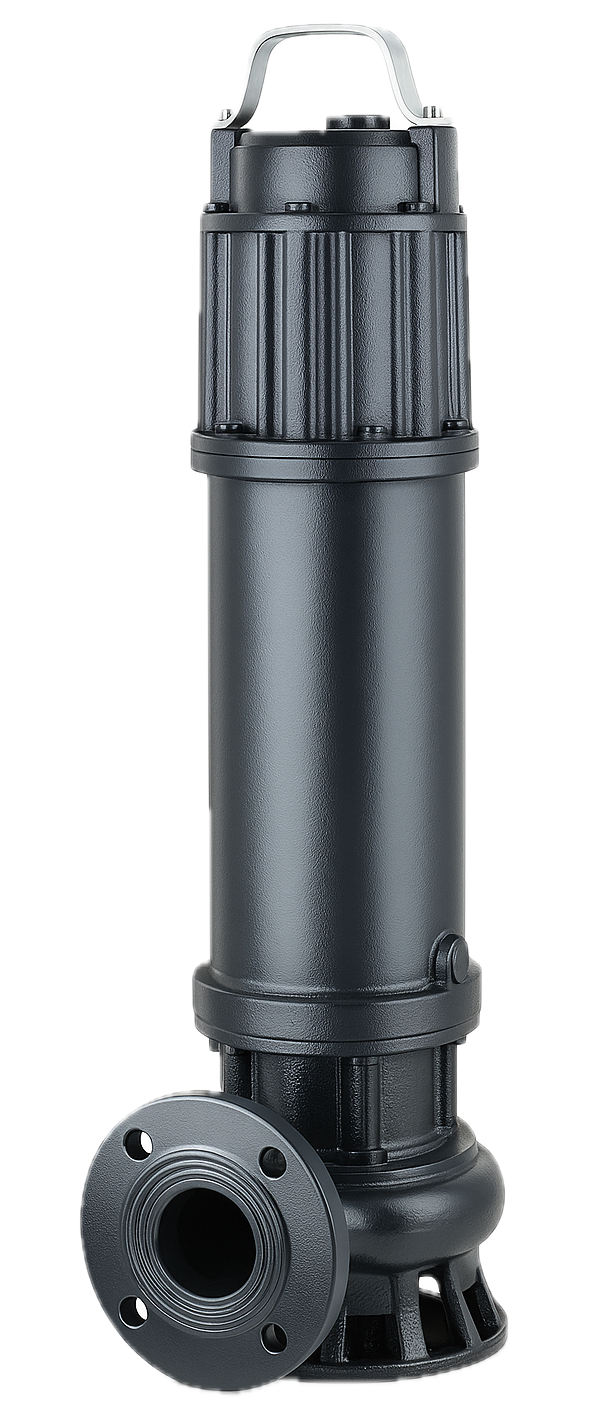

SL/SH
SL.Ex SH.Ex are explosion-proof submersible sewage pumps of the SL/SH series, designed for safe pumping of drainage, surface, domestic, and industrial wastewater in hazardous areas. Compliant with T4 temperature class.
Capacity
Qmin – 13 m³/h Qmax – 1310 m³/h
Max Head
Hmin – 8 m Hmax – 80 m

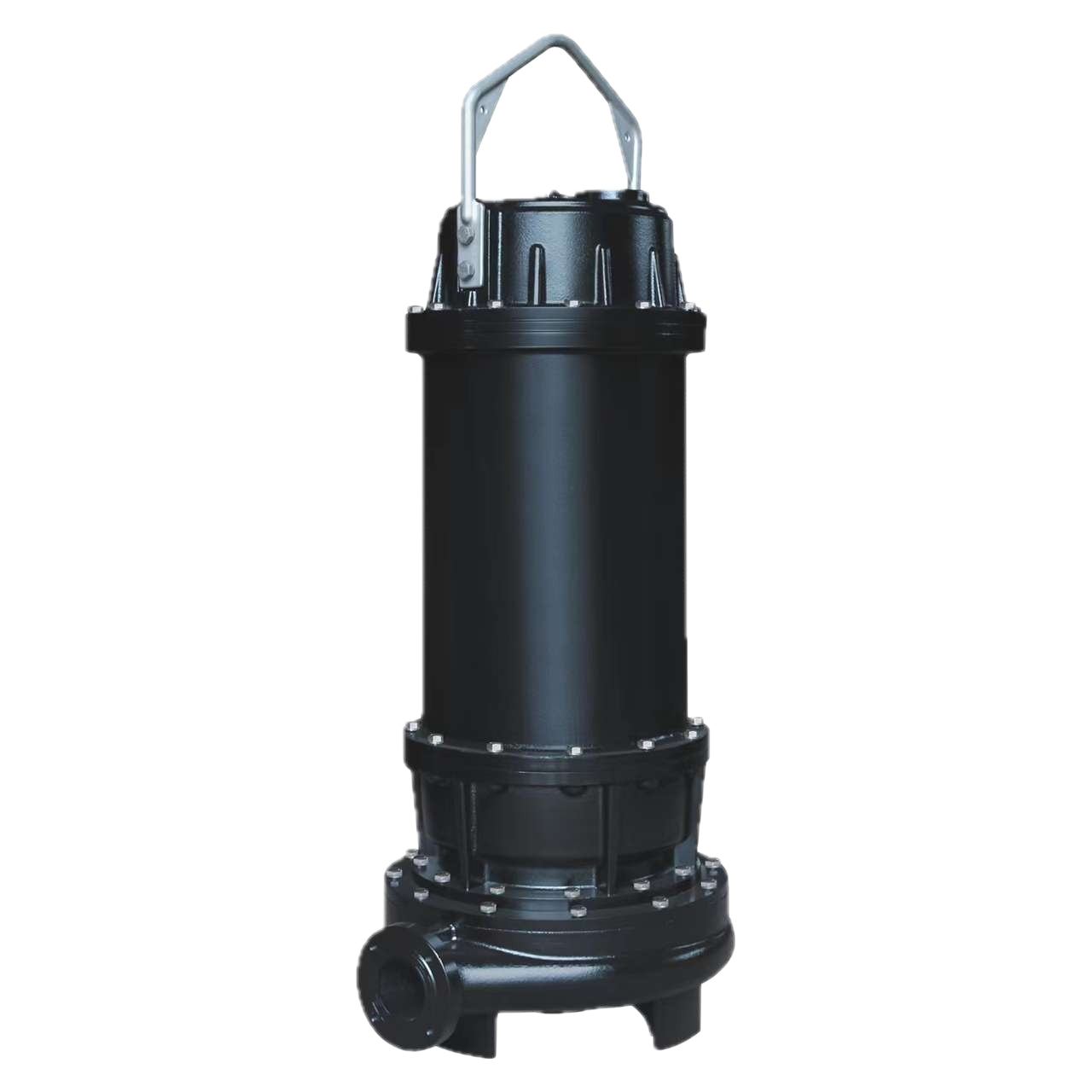

SL/SH Series
SL/SH are submersible sewage pumps with 2-4 channel closed impellers, designed for large volumes of drainage and surface water. Optional cooling jacket allows semi-submerged operation.
Capacity
Qmin – 13 m³/h Qmax – 5200 m³/h
Max Head
Hmin – 12 m Hmax – 104 m

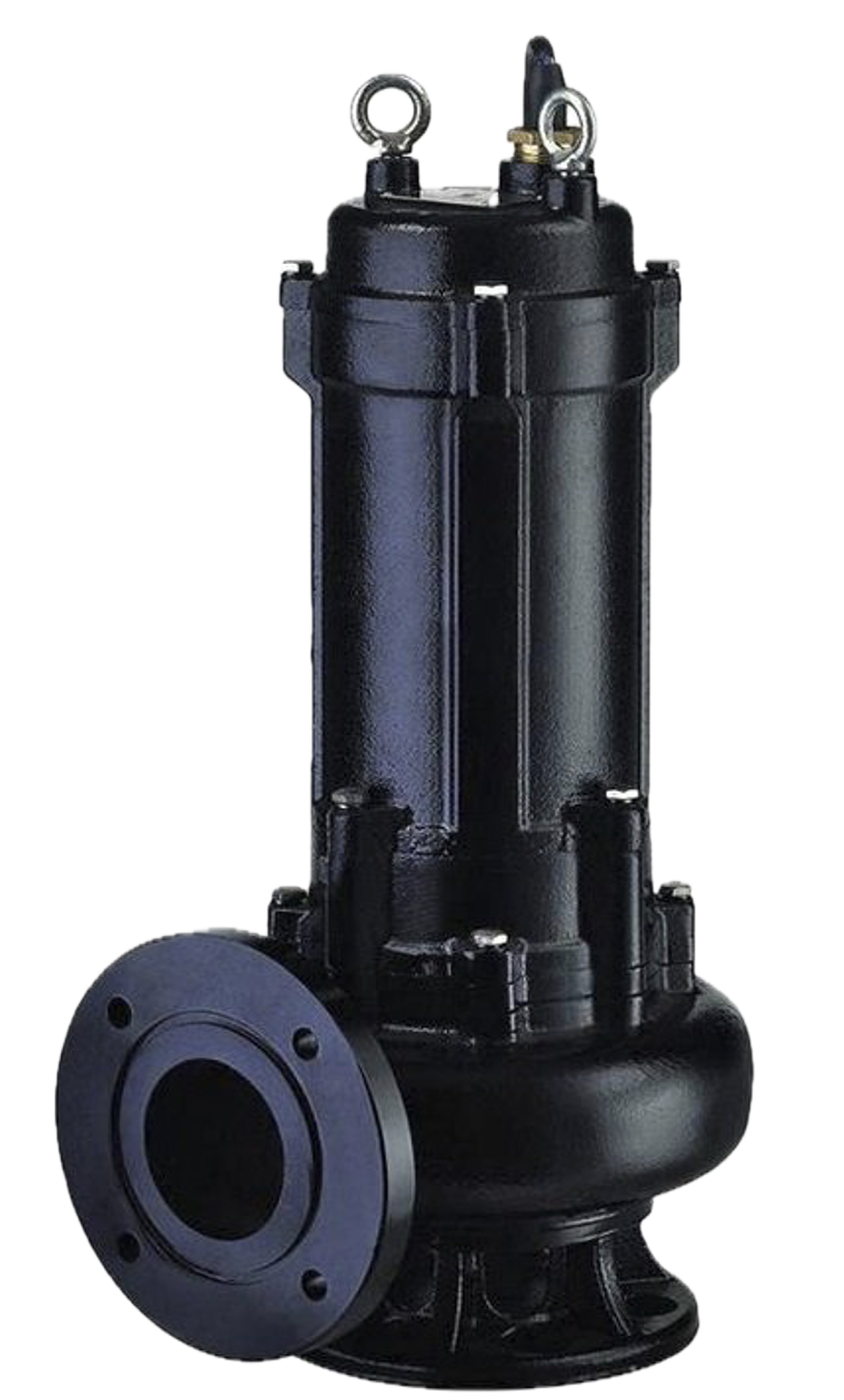

SL.B Series
SL.B is a budget-friendly modification of the SL series, retaining high reliability and performance without additional sensors. Ideal for cost-effective drainage solutions.
Capacity
Qmin – 13 m³/h Qmax – 120 m³/h
Max Head
Hmin – 12 m Hmax – 42 m

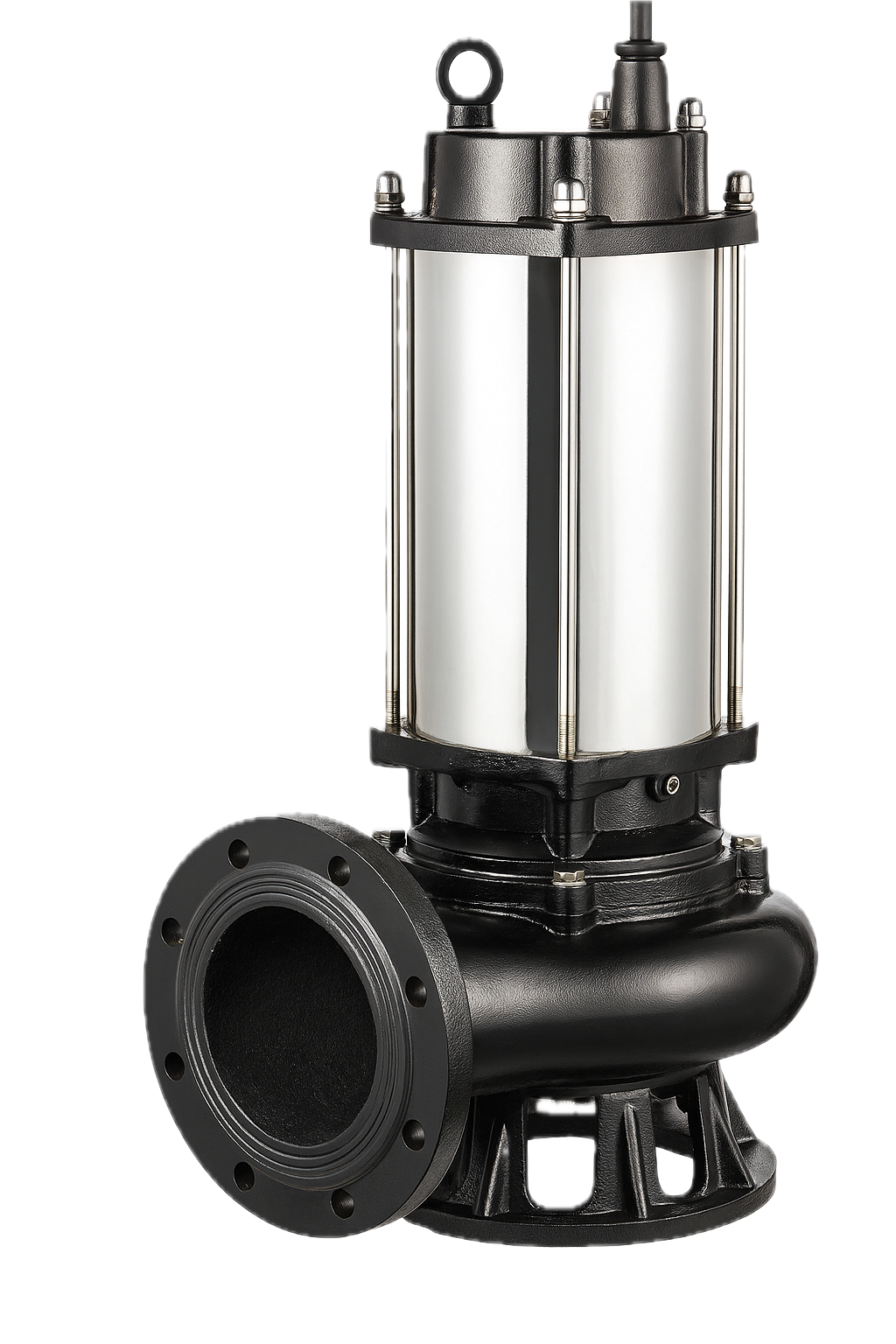

SL.S
SL.S are submersible sewage pumps equipped with a single-channel impeller with optimized vortex-type hydrodynamics. The design represents an evolution of vortex technology. The unique spiral shape of the single channel creates a low-pressure zone that 'draws in' large inclusions, ensuring their transport without hydraulic shock to the blades. It combines the laminar nature of the main flow with controlled turbulence in the inclusion transport zone.
Capacity
Qmin – 12 m³/h Qmax – 80 m³/h
Max Head
Hmin – 9 m Hmax – 16 m

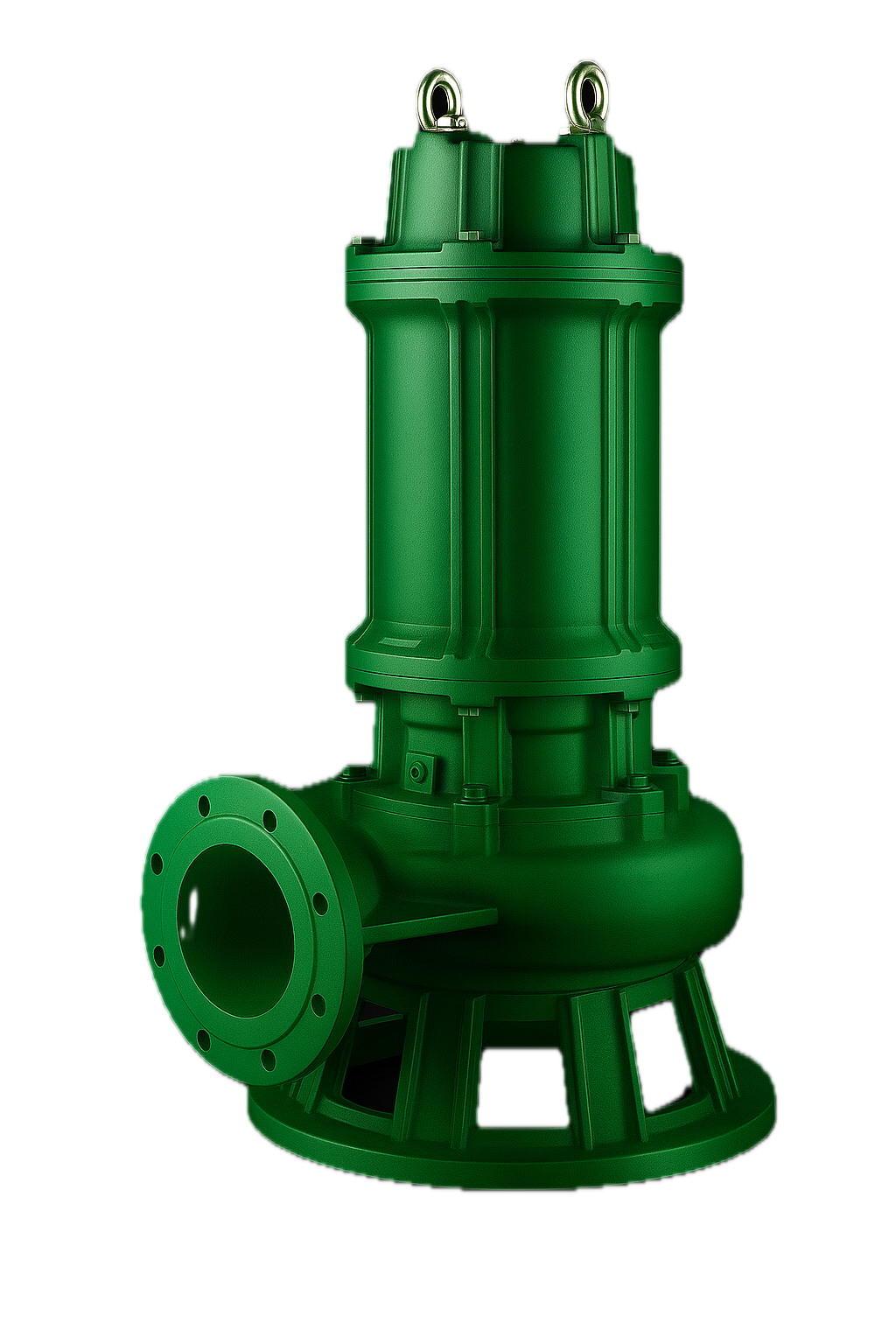

SL.V
SL.V are submersible sewage pumps equipped with a vortex impeller with radially arranged blades made of wear-resistant materials. The pumped medium interacts with the impeller indirectly by creating a vortex flow in the working chamber. This minimizes direct contact of abrasive particles and long-fiber inclusions with the blades, which is the basis of the model's key advantages.
Capacity
Qmin – 20 m³/h Qmax – 60 m³/h
Max Head
Hmin – 9 m Hmax – 22 m

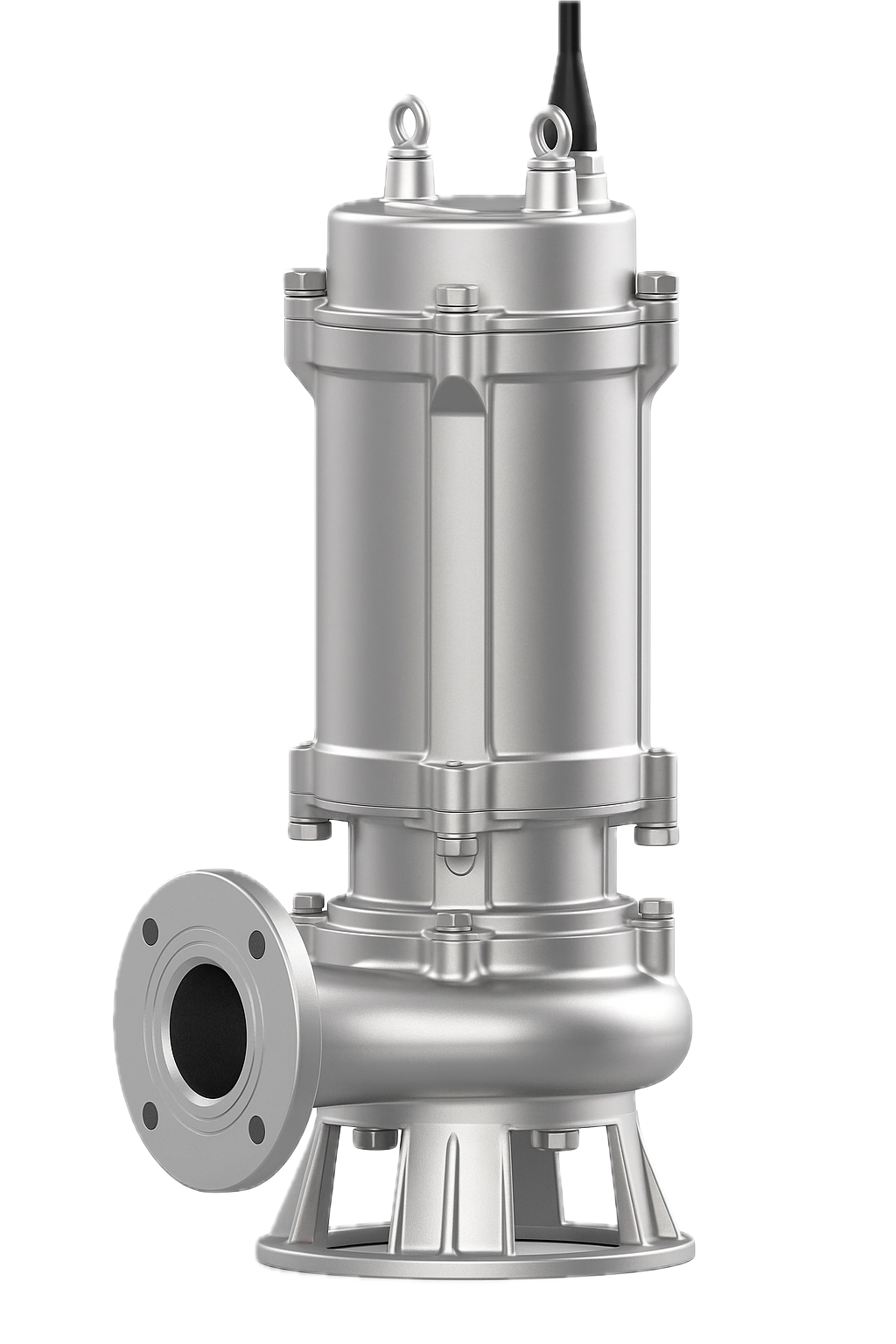

SX
SX are submersible sewage pumps with a stainless steel hydraulic part. The pump series is equipped with a two, three, or four-channel closed impeller, designed for pumping large volumes of drainage and surface water, and domestic wastewater containing sludge. The installed impeller type is not designed for pumping sewage with large and long-fiber inclusions; with proper operation, hydraulic efficiency will be highest and service life maximal. The SX pump series can be equipped with a motor cooling jacket, allowing semi-submerged operation and effective use of tank volume.
Capacity
Qmin – 13 m³/h Qmax – 1003 m³/h
Max Head
Hmin – 12 m Hmax – 90 m

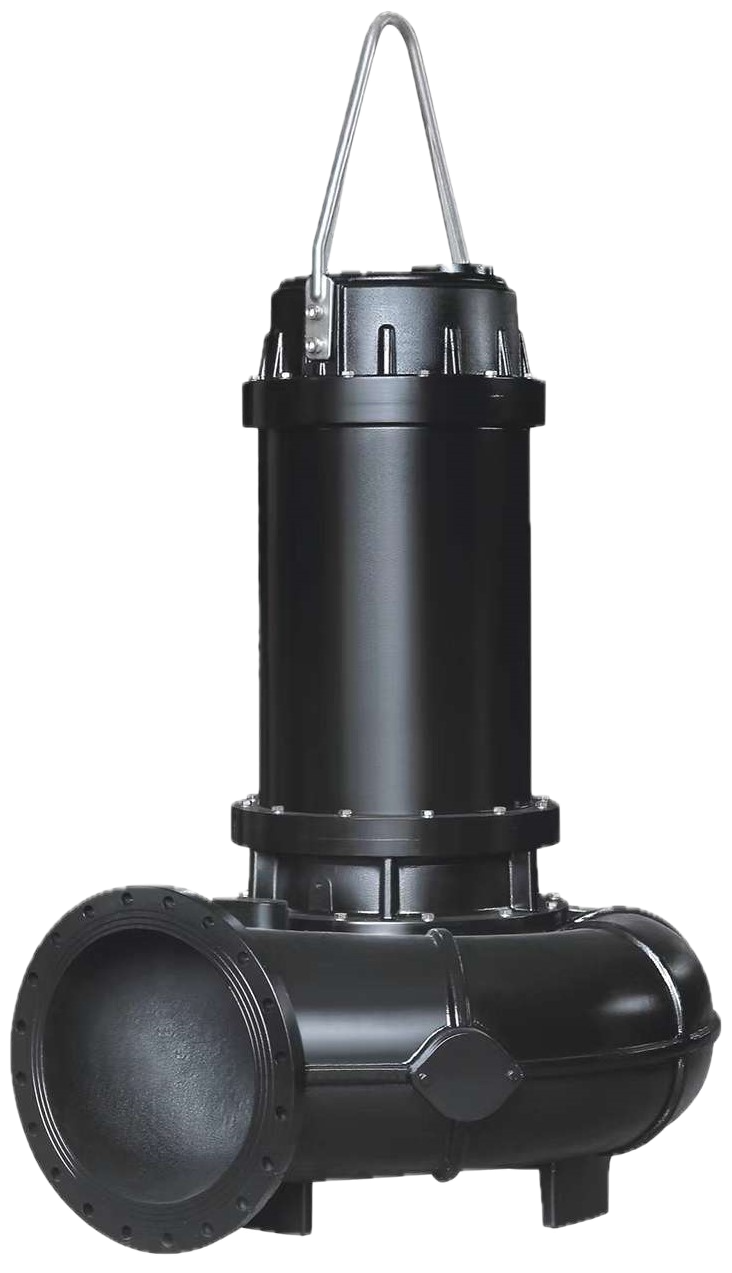

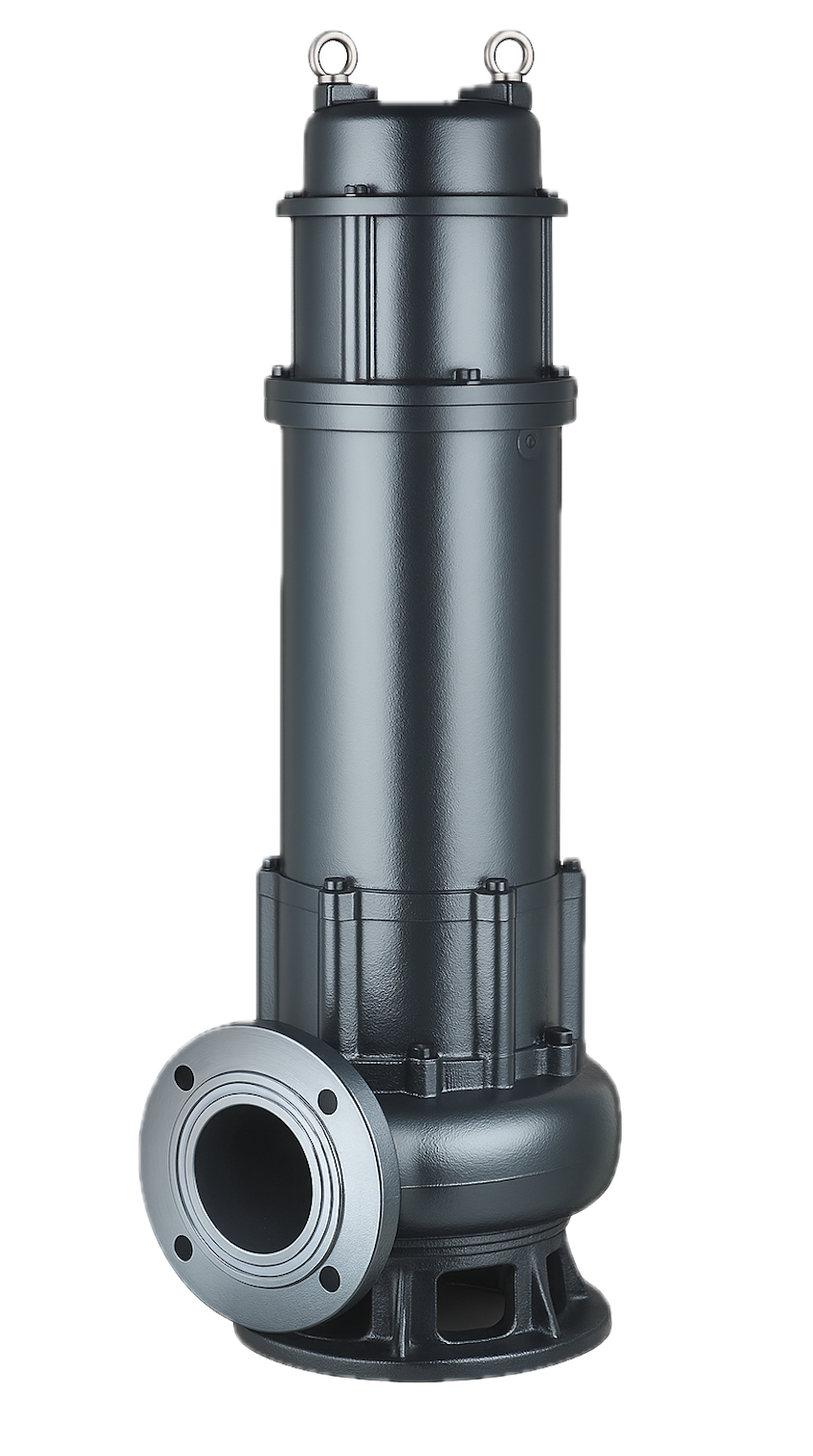

SCL/SCH Series
SCL/SCH submersible pumps feature a semi-open spiral impeller with a cutting edge to shred solids. Perfect for wastewater with fibers and solids, preventing clogs.
Capacity
Qmin – 13 m³/h Qmax – 1003 m³/h
Max Head
Hmin – 12 m Hmax – 90 m
PST Series
PST series are spiral-centrifugal submersible pumps combining screw and centrifugal principles. Excellent for gentle handling of media with large solids and long fibers.
Capacity
Qmin – 35 m³/h Qmax – 1500 m³/h
Max Head
Hmin – 10 m Hmax – 84 m

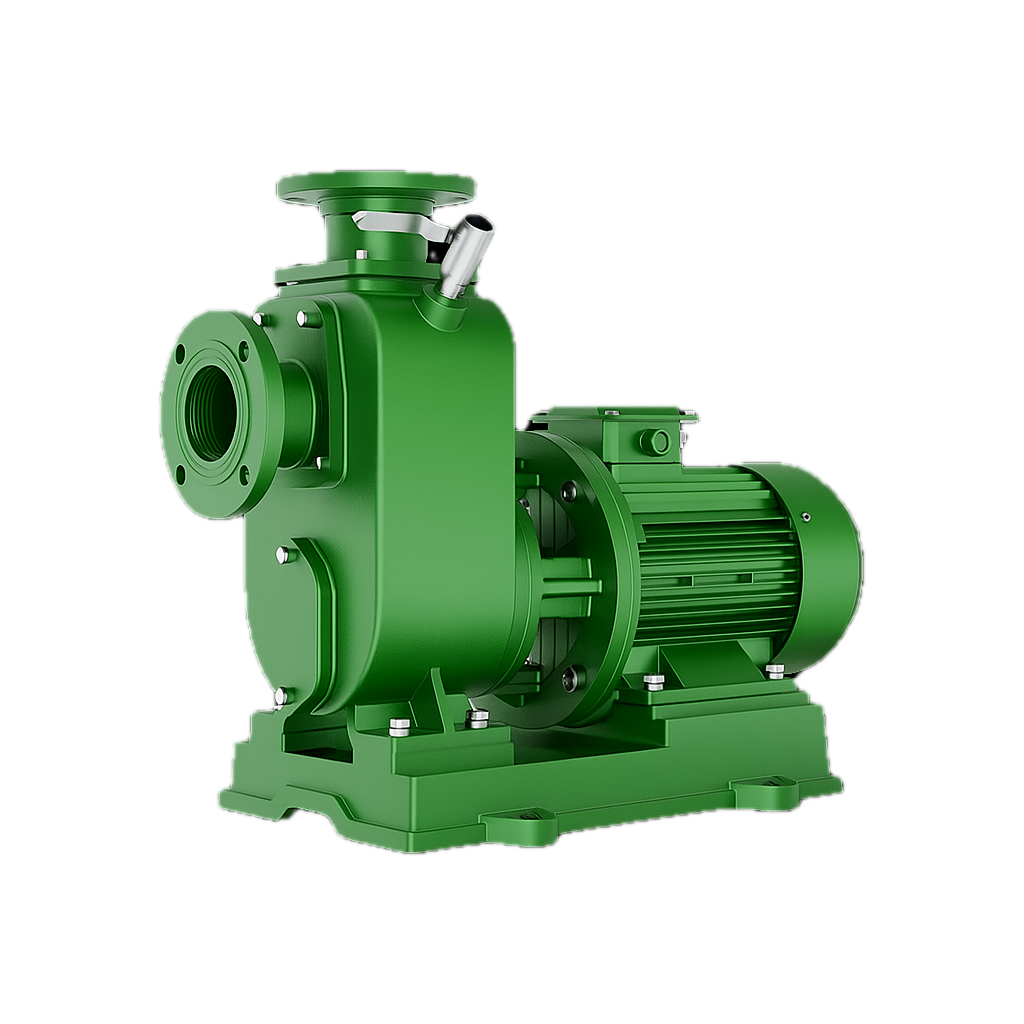

DHS Series
DHS is a dry-installed self-priming sewage pump. Features a special diffuser casing design for self-priming capability, ideal for horizontal mounting.
Capacity
Qmin – 10 m³/h Qmax – 1111 m³/h
Max Head
Hmin – 5 m Hmax – 66 m
DHSF Series
DHSF is a dry-installed self-priming sewage pump with stainless steel hydraulic parts. Offers corrosion resistance and reliable self-priming performance.
Capacity
Qmin – 10 m3/h Qmax – 1111 m3/h
Max Head
Hmin – 5 m Hmax – 66 m
DVS Series
DVS is a vertical dry-installed sewage pump with high clog resistance. Features a unique impeller design with a flow channel equal to the discharge diameter.
Capacity
Qmin – 10 m³/h Qmax – 1203 m³/h
Max Head
Hmin – 5 m Hmax – 67 m

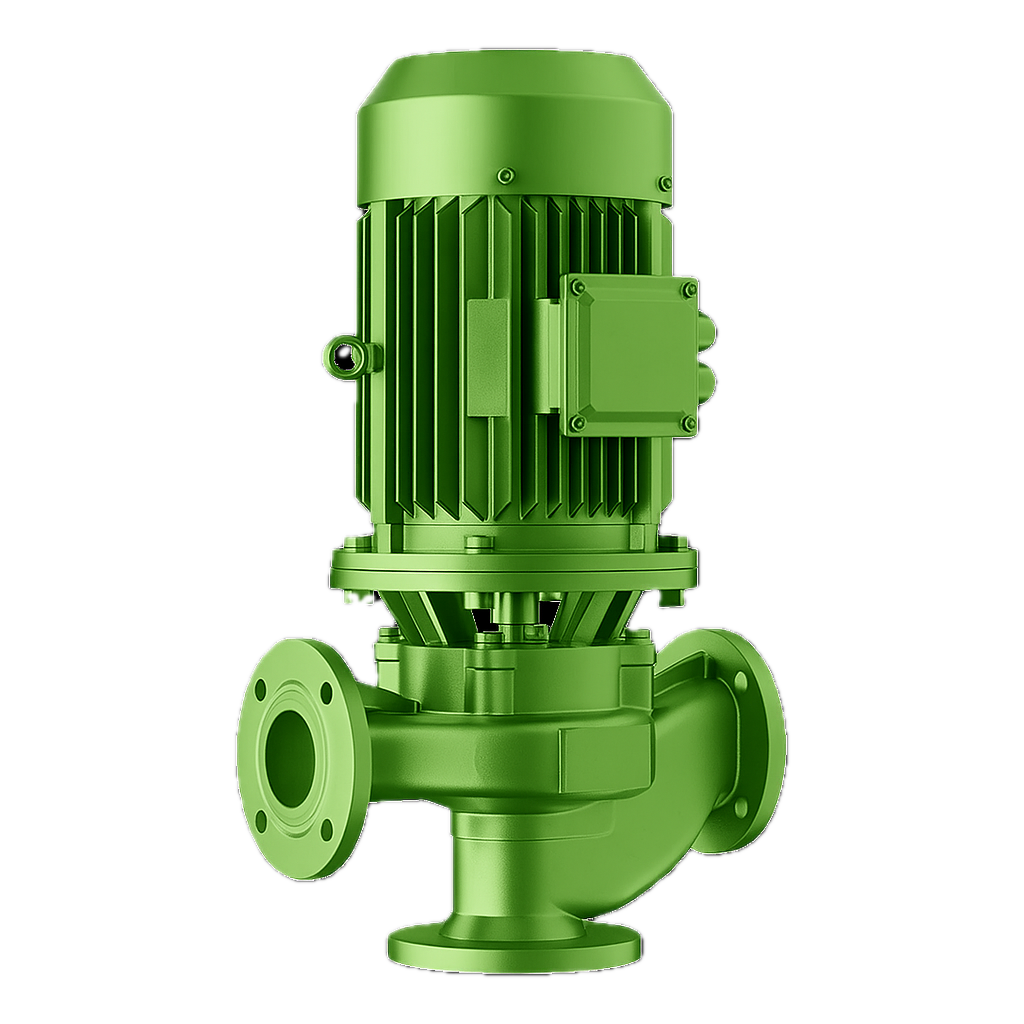

DVSI Series
DVSI is an in-line vertical dry sewage pump. Compact design with axial flanges saves space while maintaining the clog-resistant properties of the DVS series.
Capacity
Qmin – 10 m³/h Qmax – 1203 m³/h
Max Head
Hmin – 5 m Hmax – 67 m
VMF.A Series
VMF.A vertical multistage pumps are ideal for pressure boosting and water supply. They handle clean liquids and offer high efficiency with a compact vertical footprint.
Capacity
Qmin – 1 m³/h Qmax – 200 m³/h
Max Head
Hmin – 12 m Hmax – 300 m

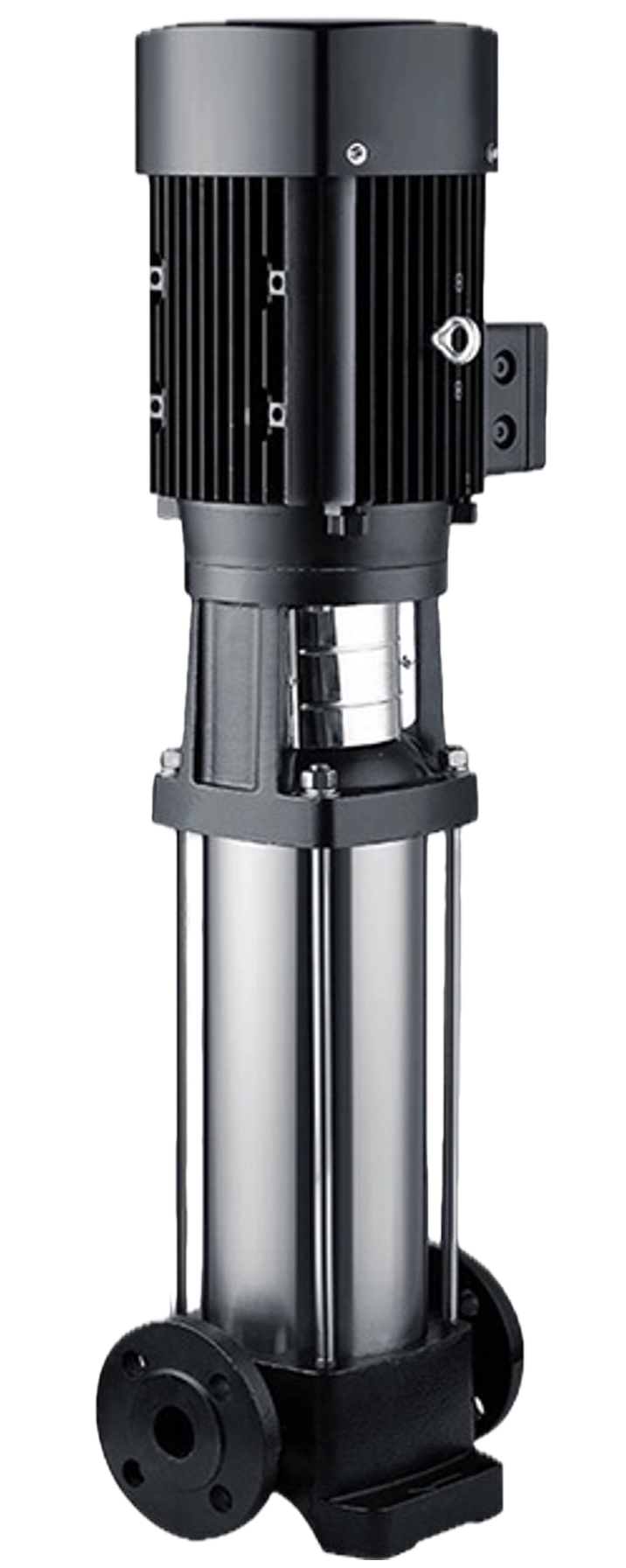

VMC Series
VMC vertical multistage pumps feature a cast iron base and reinforced construction. Designed for high pressure applications up to 300m head.
Capacity
Qmin – 1 m³/h Qmax – 200 m³/h
Max Head
Hmin – 12 m Hmax – 300 m

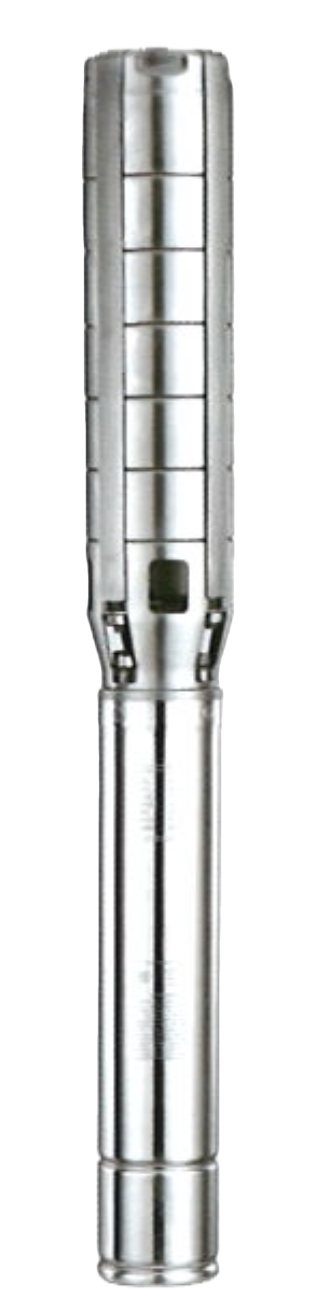

MWP Series
MWP submersible borehole pumps are designed for deep well water extraction. Available in 4 to 10 inch sizes with corrosion-resistant materials.
Capacity
Qmin – 1 m³/h Qmax – 280 m³/h
Max Head
Hmin – 3 m Hmax – 504 m
VCP Series
VCP vertical in-line centrifugal pumps are monoblock units for industrial circulation. Compact and reliable for high temperature and pressure systems.
Capacity
Qmin – 5 m³/h Qmax – 1680 m³/h
Max Head
Hmin – 5 m Hmax – 152 m

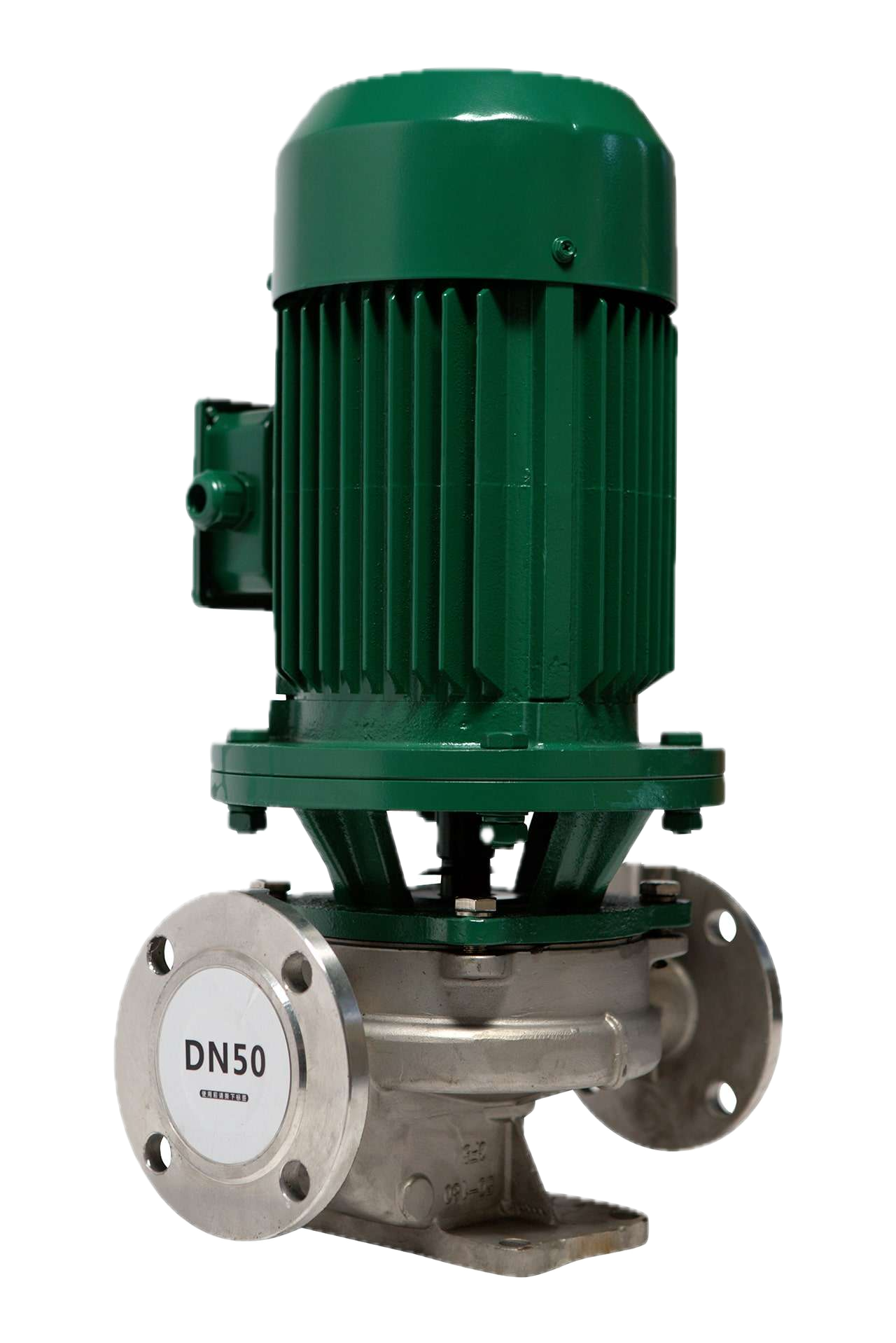

VCPF Series
VCPF vertical in-line pumps feature stainless steel hydraulics. Designed for circulation of clean or slightly aggressive liquids in industrial systems.
Capacity
Qmin – 5 m³/h Qmax – 1680 m³/h
Max Head
Hmin – 5 m Hmax – 152 m

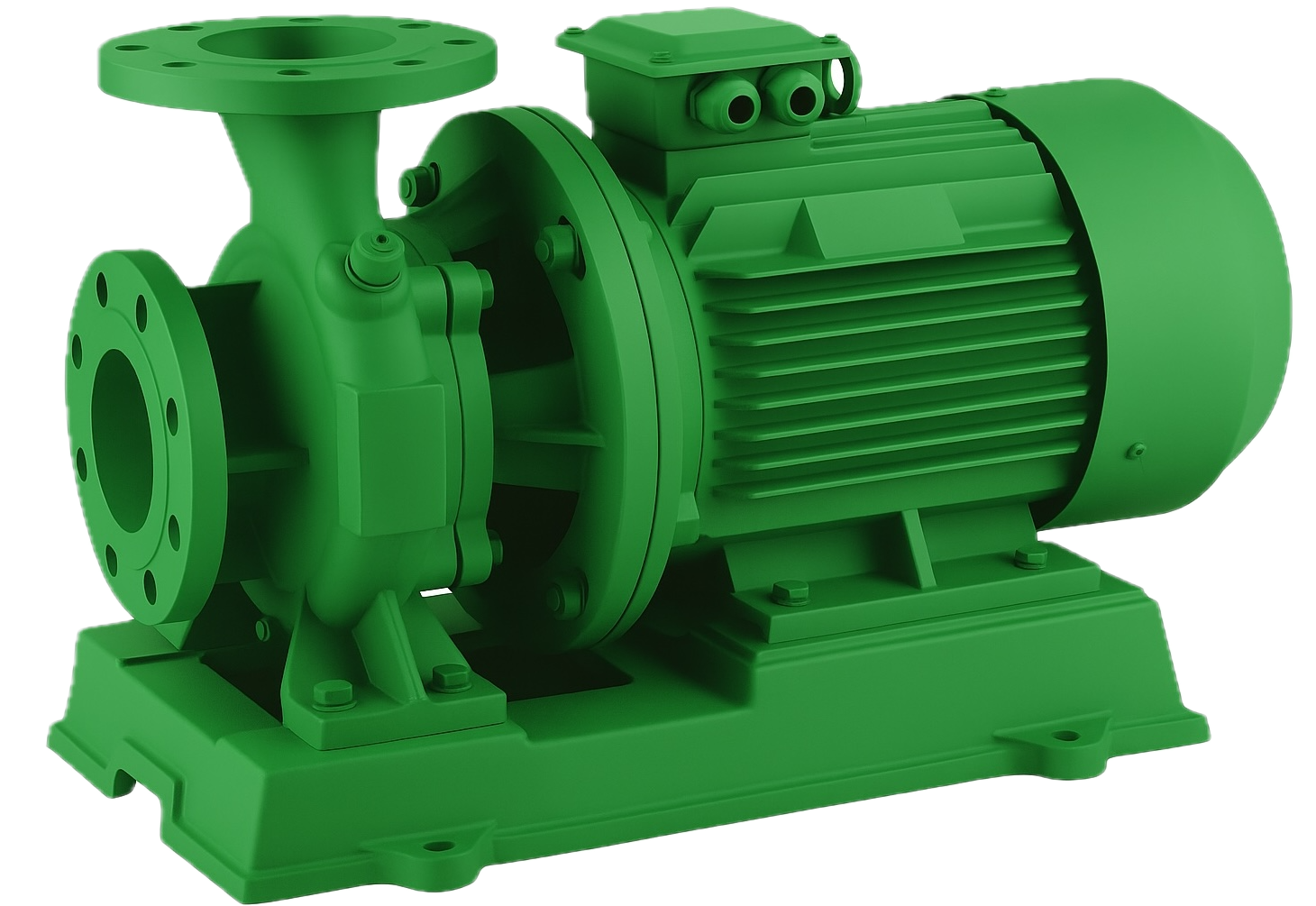

HCP Series
HCP horizontal monoblock centrifugal pumps. Compact design for water supply, heating, and industrial applications with clean liquids.
Capacity
Qmin – 5 m³/h Qmax – 1680 m³/h
Max Head
Hmin – 5 m Hmax – 152 m
HCPF Series
HCPF horizontal monoblock pumps with stainless steel hydraulics. Suitable for water supply and industrial processes requiring corrosion resistance.
Capacity
Qmin – 5 m³/h Qmax – 1680 m³/h
Max Head
Hmin – 5 m Hmax – 152 m
Need a Custom Solution?
Our engineering group specializes in OEM development and modification of pumping systems for unique industrial applications.
